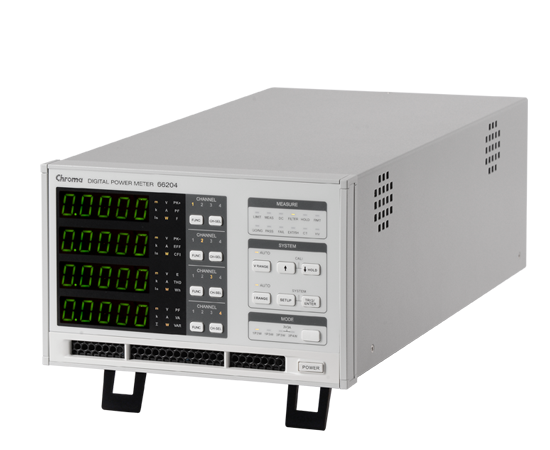

Chroma - 66203

3-Channel Digital Power Meter 600V/ 0.75W-12kW, DC 15Hz-10kHz, incl. GPIB+USB

66203 ( 3 channels) / 66204 (4 channels):

Voltage ranges : 15/30/60/150/300/600 Vrms,1200Vrms, 1800Vrms (optional kits)

Current rranges : 0.005/0.02/0.05/0.2/0.5/2/5/20 Arms

Frequency range : DC, 10Hz~10kHz

Embedded high speed DSP, 16 bits Analog/Digital converters

Half rack size, up to 4 input modules

Supports various single and 3 phase wiring configurations

Supports external shunt and CT for higher current applications

5 mA minimum current range & 0.1mW power resolution

Meets ENERGY STAR / EN 50564 / IEC 62301 / ErP / SPEC Power

Includes accumulated energy methods for unstable power measurement

User-define criteria provides automatic PASS/FAIL indications

Dual current shunt design provides high accuracy over a wide current range

THD and user-specify order distortion measurement

Inrush current and energy measurements

Voltage / Current harmonics measurements up to 50 orders

Support ultra high precision DCCT 60A/200A optional kit for high current measurement application

66203/66204 meters also include remote control using USB or GPIB interfaces via rear panel connections

€ 1 805 (net) $2 166 (US)
