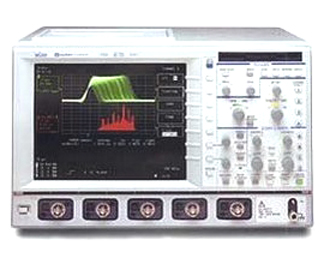

Colour Digital Storage Oscilloscope 500MHz 500MS/s, 4 Channels
500 MHz @ 50 Ohm and at probe tip with PP006; select bandwidth limit (25 or 200 MHz) independently by channel.
Probes:
Model PP006: 10:1, 10 MOhm with autodetect (one per channel)
Probe System: ProBus Intelligent Probe System supports differential amplifiers and active, high-voltage, current, and differential probes.
Color Waveform Display:
Type: Color 8.4 flat panel TFT-LCD with VGA, 640 x 480 resolution
Screen Saver: Display blanks after 10 minutes. Real Time Clock: Date, hours, minutes, and seconds displayed with waveform
Number of Traces: Maximum eight on four channel models, six on two channel models; simultaneously display channel, zoom, memory, and math traces
Grid Styles: Single, Dual, Quad, Octal, XY, Single+XY, Dual+XY; Full Screen gives enlarged view of each style.
Waveform Styles: Sample dots joined or dots only -- regular or bold
Analog Persistence Display:
Analog and Color-Graded Persistence: Variable saturation levels; stores each traces persistence data in memory
Trace Display: Opaque or transparent overlap Zoom Expansion Traces
Zoom Expansion Traces
Style: Display up to four zoom traces Vertical Zoom: Up to 5x expansion, 50x with averaging
Vertical Zoom: Up to 5x expansion, 50x with averaging
Horizontal Zoom: Expand to 2 pts/div, magnify to 50,000x
Auto scroll: Automatically scan and display a captured signal
Rapid Signal Processing
Processor: 160 MHz PowerPC
Memory:
16 Mbytes: LT364, LT344, LT342, LT322, LT224
32 Mbytes: LT364L, LT344L, LT342L
Internal Waveform Memory
Waveform: M1, M2, M3, M4**
Zoom and Math: A, B, C, D
**Store full-length waveforms with 16 bits/data point.
Setup Storage:
For front panel and instrument status: Four non-volatile memories and floppy drive are standard. PC card hard drive and memory card are optional.
€ 4.800 (net) $5.760 (US)
