MXG Microwave Analog Signal Generator. Opt.: 540 = Frequency range 100kHz-40GHz; 1E1 = Step Attenuator; UNT=AM/FM Phase Modulation; UNZ = Fast Frequency Switching. Unit sold with a valid calibration certificate.

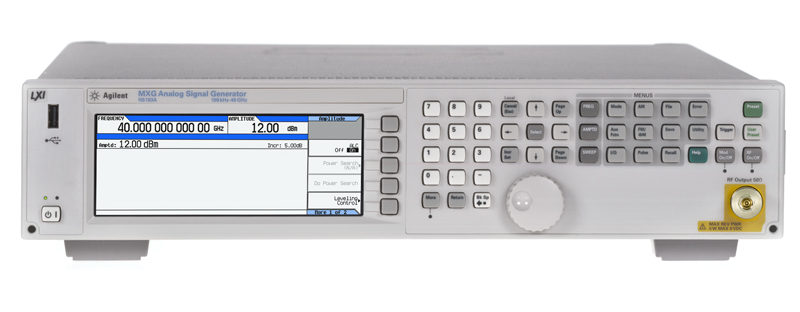

The Agilent (now Keysight) N5183A is a MXG Microwave Analog Signal Generator designed for broadband component manufacturing up to 40 GHz. With Option 540 it has a bandwidth from 100 kHz to 40 GHz.

It offers fast switching, excellent power and level accruacy, pulse train generator, easy upgrades, self-maintenance and small size.

The N5183A can be configured to meet your test needs, from LO substitution and CW interferer to analog modulation for device characterization.

Bandwidth: 100 kHz to 40 GHz

Output power: +19 dBm at 20 GHz

Frequency switching speeds: <= 900 µs, typ. 600 µs

Phase Noise at 20 kHz offset typ.: <= -116 dBc/Hz

Excellent power and level accuracy for reliable driving high power devices

Modulation: AM, FM, ΦM, and pulse

< 10 ns pulse rise/fall time and 20 ns pulse widths

Digital and step sweep

100BaseT LAN, USB 2.0 and GPIB interfaces

LXI compliant

SCPI and IVI-COM drivers

Backward compatible with PSG, 8340, 8360 and 8370 series signal generators

Small size: 2RU

€ 32.000 (net) $38.400 (US)
