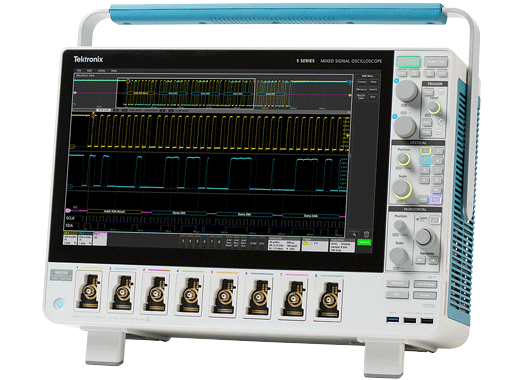

Tektronix - MSO44 4-BW-500

Mixed Signal Oscilloscope, 4 FlexChannels. Option: 4-BW-500 = 500MHz Bandwidth. Unit sold with a valid calibration certificate and with 36 months warranty.

Input Channels:

4 FlexChannel

Each FlexChannel offers one analog signal input or eight digital logic inputs with TLP058-logic probe (optional)

Bandwidth: 500MHz

Sample rate (all analog/digital channels):

Real time: 6,25 GS/s

Interpolate: 500 GS/s

Record length (all analog/digital channels):

31.25 Mio. points Standard

62.5 Mio. points (optional)

Capture rate: >500.000 Signals/s

Vertical resolution:

12 Bit ADC

Up to 16 Bit in Hi-Res-Mode

Standard trigger types:

Edge, Pulse Width, Runt, Timeout, Window, Logic, Setup & Hold, Rise/ Fall Time, Parallel Bus, Sequence, Visual Trigger Auxiliary Trigger ≤300 VRMS (Edge Trigger only)

Standard analysis:

Cursor: Kurvenform, V-Balken, H-Balken, V&H-Balken

36 Measurements

Plots: Time trend, histogram and spectrum

Math: Arithmetic base signal calulation, FFT and advanced math-editor

Search: search for any trigger criteria

Jitter: TIE and Phase noise

Optional Analysis:

Spectrum view

Mask testing

Power Measurement and Analysis

Optional triggering, decode and analysis serial busses: I2C, SPI, I3C,RS-232/422/485/UART, SPMI, CAN, CAN FD, LIN, FlexRay, SENT, USB 2.0, Ethernet, I2S, LJ, RJ, TDM, MIL-STD-1553, ARINC 429, Spacewire, 8B/10B

Arbitrary function waveform generator: 50 MHz waveform generation

Waveform types: Arbitrary, sine, square, pulse, ramp, triangle, DC-level, Gauß, Lorentz, Exponent. rise and fall, Sin(x)/x, white noise, Haversinus, cardiac

Digital voltmeter: 4-digits voltage measurment the rms values of AC voltage, DC voltage as AC/DC voltage

Trigger frequency counter: 8-digits

Display: 13.3 " (338 mm) TFT Color; High Definition (1920 x 1080) resolution; Capacitive (multitouch capable) touchscreen

Connectivity: USB 2.0 host, USB 2.0 device (5 ports), LAN (10/100/1000 Base-T Ethernet; ), HDMI

e*Scope®: Diplay and remote control of cscilloscopss via network connection with standard webbrowser

Standard probes: One passive 10-MΩ-voltage probe with <4 pF capacitive load per channel (one passive analog probe per FlexChannel: TPP0500B 500MHz probe at models 1 GHz bandwidth)

Dimension (HxWxD): 249x450x155mm

Weight: 7.6 kg

€ 15.900 (net) $19.080 (US)
